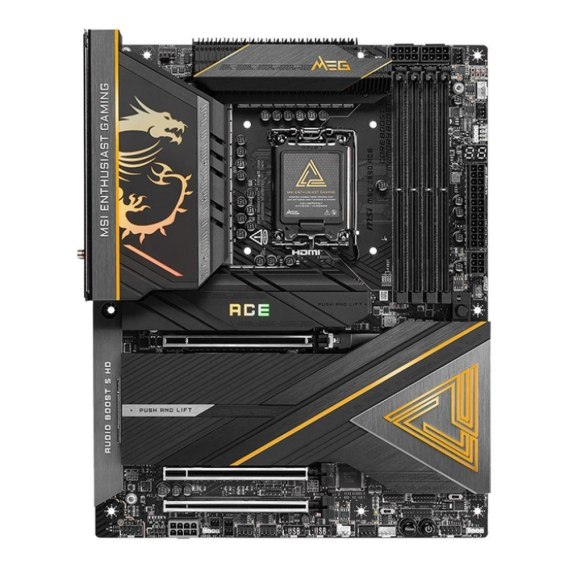

Płyta MSI MEG Z890 ACE Z890 DDR5 SATA3 M.2 TB4 WiFi BT PCIe5.0 s.1851 ATX
Symbol:
MEG Z890 ACE
Dostępność:
Mało
4
szt.
Cena:3392.13
szt.
Dostępność i dostawa
Wysyłka w ciągu: 48 godzin
Cena przesyłki:
0
Odbiór osobisty0
Kurier0
Paczkomaty InPost0
Kod kreskowy:
EAN:
4711377260787
Gniazdo procesora< b>: Socket 1851
Obsługiwane typy procesorów< b>: Intel Core Ultra Processors (series 2)
Format płyty< b>: ATX
Chipset płyty głównej< b>: Intel® Z890
Ilość złącz pamięci DDR5< b>: 4
Maksymalna wielkość pamięci< b>: 256 GB
Tryb pracy pamięci RAM< b>: Dual Channel
Uwagi do pamięci RAM< b>: Max. overclocking frequency:, - 1DPC 1R Max speed up to 9200+ MT s, - 1DPC 2R Max speed up to 7200+ MT s, - 2DPC 1R Max speed up to 6400+ MT s, - 2DPC 2R Max speed up to 5600+ MT s, Supports Intel® POR Speed and JEDEC Speed, Supports Memory Overclocking and Intel® XMP 3.0, Supports Non-ECC, Un-buffered memory, Supports CUDIMM
Zintegrowany kontroler SATA< b>: Chipset+CPU: 4x SATA III 6Gb s - RAID 0,1,5,10 + 5x M.2 + RAID 0,1,5,10
Uwagi do kontrolera SATA< b>: - M.2_1 Source (From CPU) supports up to PCIe 5.0 x4,, supports 2280 2260 devices, - M.2_2 Source (From CPU) supports up to PCIe 4.0 x4,, supports 2280 2260 devices, - M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 ,, supports 2280 2260 devices, - M.2_4 Source (From CPU+Chipset) supports up to PCIe 5.0 x4 + PCIe 4.0 x4,, supports 22110 2280 2260 devices, - M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 SATA mode,, supports 22110 2280 devices, M2_4 default from chipset, can support PCIe 5.0 x4 (From CPU) by manual, BIOS adjustment, M2_4 and M2_5 cannot support 22110 Device at the same time, Please refer to the manual for M.2 SSD heatsink restrictions.
Uwagi do karty graficznej< b>: Support HDMI 2.1 with FRL port, maximum resolution of 8K 60Hz, Thunderbolt™ 4 ports, supporting DisplayPort 2.1 with UHBR20 over, USB Type-C, with a maximum resolution of 4K@120Hz 8K@60Hz, Graphics specifications may vary depending on the CPU installed
Uwagi do karty dźwiękowej< b>: 7.1-Channel USB High-Performance Audio, Supports up to 32-Bit 384 kHz playback on front panel
Złącza PCI Express x16< b>: 3
Uwagi do złącz PCI< b>: - PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU), - PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU), - PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset), PCI_E1 support manual BIOS adjustment to X8+X8 X8+X4+X4, PCI_E2 support manual BIOS adjustment to X4+X4, PCI_E1 slot will run at x8 speed when PCI_E2 slot installing device, PCI_E1 slot will run at x8 speed and PCI_E2 slot will run at x4 speed when, installing PCIe Gen 5 M.2 device in the M2_4 slot.
Port LAN< b>: 1x 10 Gigabit LAN Marvell® AQC113CS
Maksymalna ilość portów USB 2.0< b>: 4
Maksymalna ilość portów USB 3.x< b>: 18
Maksymalna ilość portów USB 4.0< b>: 2
Porty USB na panelu tylnym< b>: 11x USB 3.1 + 2x USB 3.1 Type-C + 2x Thunderbolt 4 USB4
Gniazda USB na płycie głównej< b>: 4x USB 2.0 + 4x USB 3.0 + 1x USB 3.2 Type-C
Port Wi-Fi< b>: IEEE 802.11a b g n ac ax be
Port Bluetooth< b>: Bluetooth V5.4
Uwagi do WiFi BT< b>: Intel® Killer™ BE1750x Wi-Fi 7, The Wireless module is pre-installed in the M.2 (Key-E) slot, Supports MU-MIMO TX RX, 2.4GHz 5GHz 6GHz* (320MHz) up to 5.8Gbps, Supports 802.11 a b g n ac ax be, Supports Bluetooth® 5.4**, MLO, 4KQAM, 6GHz band support may depend on every country's regulations and Wi-Fi 7, will be ready in Windows 11 version 24H2., The Bluetooth version may be updated, please refer to the Wi-Fi chipset, vendor's website for details. Bluetooth 5.4 will be ready in, Windows 11 version 24H2.
Port PS 2< b>: Brak
Port szeregowy (COM)< b>: Brak
Port równoległy (LPT)< b>: Brak
Inne porty i gniazda< b>: CPU Fan, 2x Combo Fan (Pump_Sys Fan), 5x System Fan, EZ Conn-header (JAF_2), 2x Front Panel, Chassis Intrusion (JCI), Water Flow connector, Slow mode booting jumper, Thermal Sensor connectors, Tuning Controller Connector, 3x Addressable V2 RGB LED connector, RGB LED connector, TPM pin header, V-check point
2x Combo Fan (Pump_Sys Fan), 2x Front Panel, 3x Addressable V2 RGB LED connector, 5x System Fan, Chassis Intrusion (JCI), CPU Fan, EZ Conn-header (JAF_2), RGB LED connector, Slow mode booting jumper, Thermal Sensor connectors, TPM pin header, Tuning Controller Connector, V-check point, Water Flow connector
Maksymalna ilość portów USB 2.0:
4
Maksymalna ilość portów USB 3.x:
18
Maksymalna ilość portów USB 4.0:
2
Maksymalna wielkość pamięci:
256 GB
Obsługiwane typy procesorów:
Intel Core Ultra Processors (series 2)
Opakowanie:
BOX
Port Bluetooth:
Bluetooth V5.4
Port LAN:
1x 10 Gigabit LAN Marvell® AQC113CS
Port PS/2:
Brak
Port równoległy (LPT):
Brak
Port szeregowy (COM):
Brak
Port Wi-Fi:
IEEE 802.11a/b/g/n/ac/ax/be
Porty USB na panelu tylnym:
11x USB 3.1 + 2x USB 3.1 Type-C + 2x Thunderbolt 4/USB4
Tryb pracy pamięci RAM:
Dual Channel
Uwagi do karty dźwiękowej:
7.1-Channel USB High-Performance Audio, Supports up to 32-Bit/384 kHz playback on front panel
Uwagi do karty graficznej:
Graphics specifications may vary depending on the CPU installed, Support HDMI 2.1 with FRL port, maximum resolution of 8K 60Hz, Thunderbolt™ 4 ports, supporting DisplayPort 2.1 with UHBR20 over, USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz
Uwagi do kontrolera SATA:
- M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 ,, - M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 ,, - M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 ,, - M.2_4 Source (From CPU+Chipset) supports up to PCIe 5.0 x4 + PCIe 4.0 x4,, - M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode,, BIOS adjustment, M2_4 and M2_5 cannot support 22110 Device at the same time, M2_4 default from chipset, can support PCIe 5.0 x4 (From CPU) by manual, Please refer to the manual for M.2 SSD heatsink restrictions., supports 22110/2280 devices, supports 22110/2280/2260 devices, supports 2280/2260 devices
Uwagi do pamięci RAM:
- 1DPC 1R Max speed up to 9200+ MT/s, - 1DPC 2R Max speed up to 7200+ MT/s, - 2DPC 1R Max speed up to 6400+ MT/s, - 2DPC 2R Max speed up to 5600+ MT/s, Max. overclocking frequency, Supports CUDIMM, Supports Intel POR Speed and JEDEC Speed, Supports Memory Overclocking and Intel XMP 3.0, Supports non-ECC, un-buffered memory
Uwagi do WiFi / BT:
6GHz band support may depend on every country's regulations and Wi-Fi 7 (12170), Intel® Killer™ BE1750x Wi-Fi 7, Supports 802.11 a/ b/ g/ n/ ac/ ax/ be, Supports Bluetooth® 5.4**, MLO, 4KQAM, Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps, The Bluetooth version may be updated, please refer to the Wi-Fi chipset, The Wireless module is pre-installed in the M.2 (Key-E) slot, vendor's website for details. Bluetooth 5.4 will be ready in (1694), will be ready in Windows 11 version 24H2., Windows 11 version 24H2.
Uwagi do złącz PCI:
- PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU), - PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU), - PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset), installing PCIe Gen 5 M.2 device in the M2_4 slot., PCI_E1 slot will run at x8 speed and PCI_E2 slot will run at x4 speed when, PCI_E1 slot will run at x8 speed when PCI_E2 slot installing device, PCI_E1 support manual BIOS adjustment to X8+X8/X8+X4+X4, PCI_E2 support manual BIOS adjustment to X4+X4
Wymiary [S x W] (mm):
243,84 x 304,8
Zawiera baterię / akumulator:
Tak
Zintegrowana karta dźwiękowa:
Realtek® ALC4082 Codec + ESS9219Q Combo DAC/HPA
Zintegrowany kontroler SATA:
Chipset+CPU: 4x SATA III 6Gb/s - RAID 0,1,5,10 + 5x M.2 + RAID 0,1,5,10
Złącza PCI Express x16:
3
